Visual Studio 2017 Silent offline Installation

1. Download the latest installer of Visual Studio 2017 https://visualstudio.microsoft.com/

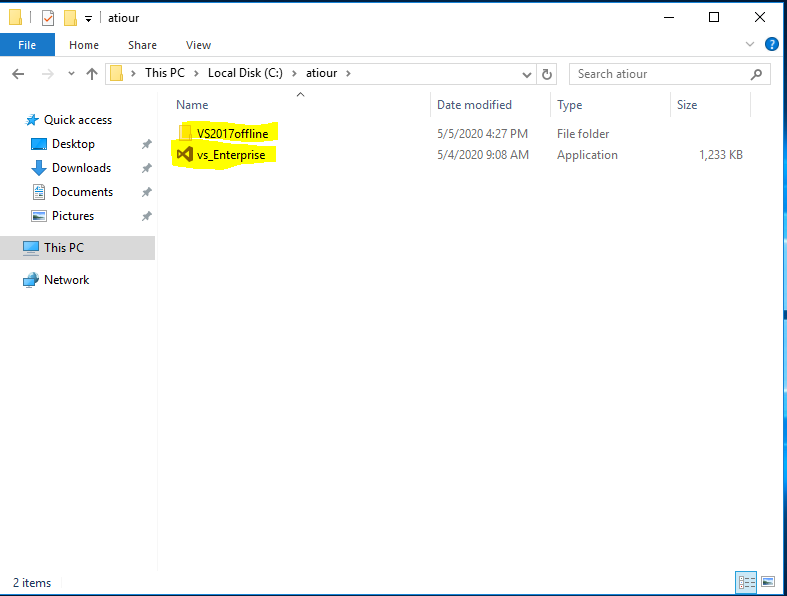

2. Copy the download folder into another folder. Also, create another folder where the offline installer file of VS 2017 will download.

3. Run cmd on the following path.

4. Copy the following command:

vs_Enterprise.exe --layout C:\atiour\VS2017Enterpriseoffline
-- lang en-us
-- add
Microsoft.VisualStudio.Workload.CoreEditor
Microsoft.VisualStudio.Workload.ManagedDesktop
Microsoft.VisualStudio.Workload.NativeDesktop
Microsoft.VisualStudio.Workload.NetCoreTools
Microsoft.VisualStudio.Workload.NetWeb
Microsoft.VisualStudio.Workload.Node
Microsoft.VisualStudio.Workload.Office
Microsoft.VisualStudio.Workload.Python
Microsoft.VisualStudio.Workload.Universal
Microsoft.VisualStudio.Workload.NetCrossPlat
Microsoft.VisualStudio.Workload.NativeMobile
Microsoft.VisualStudio.Workload.VisualStudioExtension
Microsoft.VisualStudio.Workload.WebCrossPlat

if you need additional component your can choose your required component from the link: https://docs.microsoft.com/en-us/visualstudio/install/workload-component-id-vs-enterprise?view=vs-2017

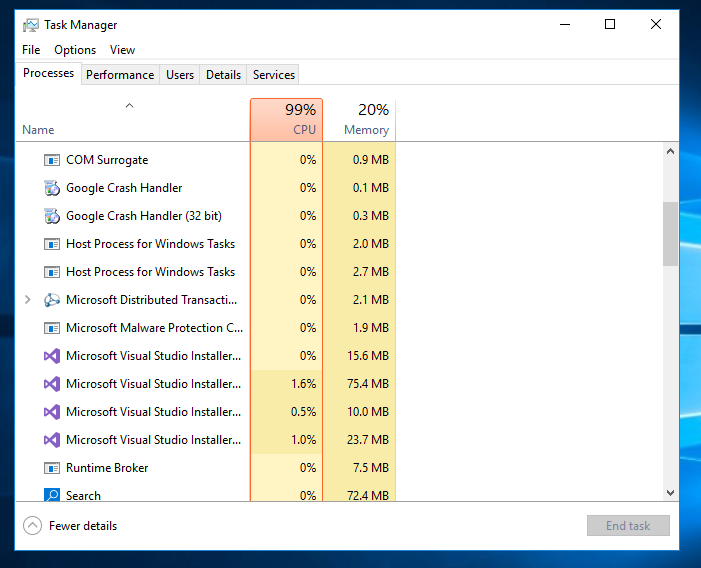

5. when you copy the command in to cmd it will start downloading

6. After complete download, you will find 2 files.

Response.template.json file contains all the downloaded component. You need to update Response.json file with Response.template.json and remove component which item you need and which item you don't need. In my case I update the Response.json file as following.

{
"installChannelUri":".\\ChannelManifest.json"
,"channelUri":"https://aka.ms/vs/15/release/channel"
,"installCatalogUri":".\\Catalog.json"
,"channelId":"VisualStudio.15.Release"
,"productId":"Microsoft.VisualStudio.Product.Enterprise"
,"includeRecommended": true
,"includeOptional": true
 "add":[
      "Component.Anaconda2.x64",
      "Component.Anaconda2.x86",
      "Component.Anaconda3.x64",
      "Component.Anaconda3.x86",
      "Component.Android.Emulator",
      "Component.Android.NDK.R11C",
      "Component.Android.NDK.R11C_3264",
      "Component.Android.NDK.R12B",
      "Component.Android.NDK.R12B_3264",
      "Component.Android.NDK.R13B",
      "Component.Android.NDK.R13B_3264",
      "Component.Android.NDK.R15C",
      "Component.Android.NDK.R15C_3264",
      "Component.Android.SDK19.Private",
      "Component.Android.SDK21.Private",
      "Component.Android.SDK22.Private",
      "Component.Android.SDK23",
      "Component.Android.SDK23.Private",
      "Component.Ant",
      "Component.Cocos",
      "Component.CordovaToolset.6.3.1",
      "Component.CPython2.x64",
      "Component.CPython2.x86",
      "Component.CPython3.x64",
      "Component.CPython3.x86",
      "Component.Dotfuscator",
      "Component.GitHub.VisualStudio",
      "Component.HAXM",
      "Component.HAXM.Private",
      "Component.Incredibuild",
      "Component.IncredibuildMenu",
      "Component.Linux.CMake",
      "Component.MDD.Android",
      "Component.MDD.IOS",
      "Component.MDD.Linux",
      "Component.MDD.Linux.GCC.arm",
      "Component.Microsoft.VisualStudio.RazorExtension",
      "Component.Microsoft.VisualStudio.Web.AzureFunctions",
      "Component.Microsoft.Web.LibraryManager",
      "Component.OpenJDK",
      "Component.Redgate.ReadyRoll",
      "Component.Redgate.SQLPrompt.VsPackage",
      "Component.Redgate.SQLSearch.VSExtension",
      "Component.UnityEngine.x64",
      "Component.UnityEngine.x86",
      "Component.Unreal",
      "Component.Unreal.Android",
      "Component.WebSocket",
      "Component.Xamarin",
      "Component.Xamarin.Inspector",
      "Component.Xamarin.Profiler",
      "Component.Xamarin.RemotedSimulator",
      "Microsoft.Component.Azure.DataLake.Tools",
      "Microsoft.Component.Blend.SDK.WPF",
      "Microsoft.Component.ClickOnce",
      "Microsoft.Component.CodeAnalysis.SDK",
      "Microsoft.Component.CookiecutterTools",
      "Microsoft.Component.HelpViewer",
      "Microsoft.Component.MSBuild",
      "Microsoft.Component.Netfx.Core.Runtime",
      "Microsoft.Component.Netfx.Native",
      "Microsoft.Component.PythonTools",
      "Microsoft.Component.PythonTools.UWP",
      "Microsoft.Component.PythonTools.Web",
      "Microsoft.Component.VC.Runtime.OSSupport",
      "Microsoft.Component.VC.Runtime.UCRTSDK",
      "Microsoft.ComponentGroup.Blend",
      "Microsoft.ComponentGroup.PythonTools.NativeDevelopment",
      "Microsoft.Net.Component.3.5.DeveloperTools",
      "Microsoft.Net.Component.4.5.1.TargetingPack",
      "Microsoft.Net.Component.4.5.2.TargetingPack",
      "Microsoft.Net.Component.4.5.TargetingPack",
      "Microsoft.Net.Component.4.6.1.SDK",
      "Microsoft.Net.Component.4.6.1.TargetingPack",
      "Microsoft.Net.Component.4.6.2.SDK",
      "Microsoft.Net.Component.4.6.2.TargetingPack",
      "Microsoft.Net.Component.4.6.TargetingPack",
      "Microsoft.Net.Component.4.7.1.SDK",
      "Microsoft.Net.Component.4.7.1.TargetingPack",
      "Microsoft.Net.Component.4.7.2.SDK",
      "Microsoft.Net.Component.4.7.2.TargetingPack",
      "Microsoft.Net.Component.4.7.SDK",
      "Microsoft.Net.Component.4.7.TargetingPack",
      "Microsoft.Net.Component.4.TargetingPack",
      "Microsoft.Net.ComponentGroup.4.6.2.DeveloperTools",
      "Microsoft.Net.ComponentGroup.4.7.1.DeveloperTools",
      "Microsoft.Net.ComponentGroup.4.7.2.DeveloperTools",
      "Microsoft.Net.ComponentGroup.4.7.DeveloperTools",
      "Microsoft.Net.ComponentGroup.DevelopmentPrerequisites",
      "Microsoft.Net.ComponentGroup.TargetingPacks.Common",
      "Microsoft.Net.Core.Component.SDK",
      "Microsoft.Net.Core.Component.SDK.1x",
      "Microsoft.Net.Core.Component.SDK.2.1",
      "Microsoft.NetCore.1x.ComponentGroup.Web",
      "Microsoft.NetCore.ComponentGroup.DevelopmentTools",
      "Microsoft.NetCore.ComponentGroup.DevelopmentTools.2.1",
      "Microsoft.NetCore.ComponentGroup.Web",
      "Microsoft.NetCore.ComponentGroup.Web.2.1",
      "Microsoft.VisualStudio.Component.AppInsights.Tools",
      "Microsoft.VisualStudio.Component.AspNet45",
      "Microsoft.VisualStudio.Component.Azure.AuthoringTools",
      "Microsoft.VisualStudio.Component.Azure.ClientLibs",
      "Microsoft.VisualStudio.Component.Azure.Compute.Emulator",
      "Microsoft.VisualStudio.Component.Azure.MobileAppsSdk",
      "Microsoft.VisualStudio.Component.Azure.ResourceManager.Tools",
      "Microsoft.VisualStudio.Component.Azure.ServiceFabric.Tools",
      "Microsoft.VisualStudio.Component.Azure.Storage.AzCopy",
      "Microsoft.VisualStudio.Component.Azure.Storage.Emulator",
      "Microsoft.VisualStudio.Component.Azure.Waverton",
      "Microsoft.VisualStudio.Component.Azure.Waverton.BuildTools",
      "Microsoft.VisualStudio.Component.ClassDesigner",
      "Microsoft.VisualStudio.Component.CloudExplorer",
      "Microsoft.VisualStudio.Component.CodeClone",
      "Microsoft.VisualStudio.Component.CodeMap",
      "Microsoft.VisualStudio.Component.Common.Azure.Tools",
      "Microsoft.VisualStudio.Component.Cordova",
      "Microsoft.VisualStudio.Component.CoreEditor",
      "Microsoft.VisualStudio.Component.Debugger.JustInTime",
      "Microsoft.VisualStudio.Component.Debugger.Snapshot",
      "Microsoft.VisualStudio.Component.DependencyValidation.Enterprise",
      "Microsoft.VisualStudio.Component.DiagnosticTools",
      "Microsoft.VisualStudio.Component.DockerTools",
      "Microsoft.VisualStudio.Component.DockerTools.BuildTools",
      "Microsoft.VisualStudio.Component.DslTools",
      "Microsoft.VisualStudio.Component.EntityFramework",
      "Microsoft.VisualStudio.Component.FSharp",
      "Microsoft.VisualStudio.Component.FSharp.Desktop",
      "Microsoft.VisualStudio.Component.FSharp.WebTemplates",
      "Microsoft.VisualStudio.Component.Git",
      "Microsoft.VisualStudio.Component.GraphDocument",
      "Microsoft.VisualStudio.Component.Graphics",
      "Microsoft.VisualStudio.Component.Graphics.Tools",
      "Microsoft.VisualStudio.Component.Graphics.Win81",
      "Microsoft.VisualStudio.Component.IISExpress",
      "Microsoft.VisualStudio.Component.IntelliTrace.FrontEnd",
      "Microsoft.VisualStudio.Component.JavaScript.Diagnostics",
      "Microsoft.VisualStudio.Component.JavaScript.ProjectSystem",
      "Microsoft.VisualStudio.Component.JavaScript.TypeScript",
      "Microsoft.VisualStudio.Component.LinqToSql",
      "Microsoft.VisualStudio.Component.LiveUnitTesting",
      "Microsoft.VisualStudio.Component.ManagedDesktop.Core",
      "Microsoft.VisualStudio.Component.ManagedDesktop.Prerequisites",
      "Microsoft.VisualStudio.Component.Merq",
      "Microsoft.VisualStudio.Component.MonoDebugger",
      "Microsoft.VisualStudio.Component.Node.Build",
      "Microsoft.VisualStudio.Component.Node.Tools",
      "Microsoft.VisualStudio.Component.NuGet",
      "Microsoft.VisualStudio.Component.NuGet.BuildTools",
      "Microsoft.VisualStudio.Component.Phone.Emulator",
      "Microsoft.VisualStudio.Component.Phone.Emulator.15063",
      "Microsoft.VisualStudio.Component.Phone.Emulator.15254",
      "Microsoft.VisualStudio.Component.PortableLibrary",
      "Microsoft.VisualStudio.Component.R.Open",
      "Microsoft.VisualStudio.Component.RHost",
      "Microsoft.VisualStudio.Component.Roslyn.Compiler",
      "Microsoft.VisualStudio.Component.Roslyn.LanguageServices",
      "Microsoft.VisualStudio.Component.RTools",
      "Microsoft.VisualStudio.Component.Runtime.Node.x86.6.4.0",
      "Microsoft.VisualStudio.Component.Runtime.Node.x86.7.4.0",
      "Microsoft.VisualStudio.Component.Sharepoint.Tools",
      "Microsoft.VisualStudio.Component.SQL.ADAL",
      "Microsoft.VisualStudio.Component.SQL.CLR",
      "Microsoft.VisualStudio.Component.SQL.CMDUtils",
      "Microsoft.VisualStudio.Component.SQL.DataSources",
      "Microsoft.VisualStudio.Component.SQL.LocalDB.Runtime",
      "Microsoft.VisualStudio.Component.SQL.NCLI",
      "Microsoft.VisualStudio.Component.SQL.SSDT",
      "Microsoft.VisualStudio.Component.StartPageExperiment.Cpp",
      "Microsoft.VisualStudio.Component.Static.Analysis.Tools",
      "Microsoft.VisualStudio.Component.TeamOffice",
      "Microsoft.VisualStudio.Component.TestTools.CodedUITest",
      "Microsoft.VisualStudio.Component.TestTools.Core",
      "Microsoft.VisualStudio.Component.TestTools.FeedbackClient",
      "Microsoft.VisualStudio.Component.TestTools.MicrosoftTestManager",
      "Microsoft.VisualStudio.Component.TestTools.WebLoadTest",
      "Microsoft.VisualStudio.Component.TextTemplating",
      "Microsoft.VisualStudio.Component.TypeScript.2.0",
      "Microsoft.VisualStudio.Component.TypeScript.2.1",
      "Microsoft.VisualStudio.Component.TypeScript.2.2",
      "Microsoft.VisualStudio.Component.TypeScript.2.3",
      "Microsoft.VisualStudio.Component.TypeScript.2.5",
      "Microsoft.VisualStudio.Component.TypeScript.2.6",
      "Microsoft.VisualStudio.Component.TypeScript.2.7",
      "Microsoft.VisualStudio.Component.TypeScript.2.8",
      "Microsoft.VisualStudio.Component.TypeScript.2.9",
      "Microsoft.VisualStudio.Component.TypeScript.3.0",
      "Microsoft.VisualStudio.Component.TypeScript.3.1",
      "Microsoft.VisualStudio.Component.Unity",
      "Microsoft.VisualStudio.Component.UWP.Support",
      "Microsoft.VisualStudio.Component.UWP.VC.ARM64",
      "Microsoft.VisualStudio.Component.VC.140",
      "Microsoft.VisualStudio.Component.VC.ATL",
      "Microsoft.VisualStudio.Component.VC.ATL.ARM",
      "Microsoft.VisualStudio.Component.VC.ATL.ARM.Spectre",
      "Microsoft.VisualStudio.Component.VC.ATL.ARM64",
      "Microsoft.VisualStudio.Component.VC.ATL.ARM64.Spectre",
      "Microsoft.VisualStudio.Component.VC.ATL.Spectre",
      "Microsoft.VisualStudio.Component.VC.ATLMFC",
      "Microsoft.VisualStudio.Component.VC.ATLMFC.Spectre",
      "Microsoft.VisualStudio.Component.VC.ClangC2",
      "Microsoft.VisualStudio.Component.VC.CLI.Support",
      "Microsoft.VisualStudio.Component.VC.CMake.Project",
      "Microsoft.VisualStudio.Component.VC.CoreIDE",
      "Microsoft.VisualStudio.Component.VC.DiagnosticTools",
      "Microsoft.VisualStudio.Component.VC.MFC.ARM",
      "Microsoft.VisualStudio.Component.VC.MFC.ARM.Spectre",
      "Microsoft.VisualStudio.Component.VC.MFC.ARM64",
      "Microsoft.VisualStudio.Component.VC.MFC.ARM64.Spectre",
      "Microsoft.VisualStudio.Component.VC.Modules.x86.x64",
      "Microsoft.VisualStudio.Component.VC.Redist.14.Latest",
      "Microsoft.VisualStudio.Component.VC.Runtimes.ARM.Spectre",
      "Microsoft.VisualStudio.Component.VC.Runtimes.ARM64.Spectre",
      "Microsoft.VisualStudio.Component.VC.Runtimes.x86.x64.Spectre",
      "Microsoft.VisualStudio.Component.VC.TestAdapterForBoostTest",
      "Microsoft.VisualStudio.Component.VC.TestAdapterForGoogleTest",
      "Microsoft.VisualStudio.Component.VC.Tools.14.11",
      "Microsoft.VisualStudio.Component.VC.Tools.14.12",
      "Microsoft.VisualStudio.Component.VC.Tools.14.13",
      "Microsoft.VisualStudio.Component.VC.Tools.14.14",
      "Microsoft.VisualStudio.Component.VC.Tools.14.15",
      "Microsoft.VisualStudio.Component.VC.Tools.ARM",
      "Microsoft.VisualStudio.Component.VC.Tools.ARM64",
      "Microsoft.VisualStudio.Component.VC.Tools.x86.x64",
      "Microsoft.VisualStudio.Component.VisualStudioData",
      "Microsoft.VisualStudio.Component.VSSDK",
      "Microsoft.VisualStudio.Component.Wcf.Tooling",
      "Microsoft.VisualStudio.Component.Web",
      "Microsoft.VisualStudio.Component.WebDeploy",
      "Microsoft.VisualStudio.Component.Windows10SDK",
      "Microsoft.VisualStudio.Component.Windows10SDK.10240",
      "Microsoft.VisualStudio.Component.Windows10SDK.10586",
      "Microsoft.VisualStudio.Component.Windows81SDK",
      "Microsoft.VisualStudio.Component.WinXP",
      "Microsoft.VisualStudio.Component.Workflow",
      "Microsoft.VisualStudio.ComponentGroup.ArchitectureTools.Managed",
      "Microsoft.VisualStudio.ComponentGroup.ArchitectureTools.Native",
      "Microsoft.VisualStudio.ComponentGroup.Azure.CloudServices",
      "Microsoft.VisualStudio.ComponentGroup.Azure.Prerequisites",
      "Microsoft.VisualStudio.ComponentGroup.Azure.ResourceManager.Tools",
      "Microsoft.VisualStudio.ComponentGroup.AzureFunctions",
      "Microsoft.VisualStudio.ComponentGroup.IISDevelopment",
      "Microsoft.VisualStudio.ComponentGroup.NativeDesktop.Core",
      "Microsoft.VisualStudio.ComponentGroup.NativeDesktop.Win81",
      "Microsoft.VisualStudio.ComponentGroup.NativeDesktop.WinXP",
      "Microsoft.VisualStudio.ComponentGroup.UWP.Cordova",
      "Microsoft.VisualStudio.ComponentGroup.UWP.NetCoreAndStandard",
      "Microsoft.VisualStudio.ComponentGroup.UWP.VC",
      "Microsoft.VisualStudio.ComponentGroup.UWP.Xamarin",
      "Microsoft.VisualStudio.ComponentGroup.VisualStudioExtension.Prerequisites",
      "Microsoft.VisualStudio.ComponentGroup.Web",
      "Microsoft.VisualStudio.ComponentGroup.Web.CloudTools",
      "Microsoft.VisualStudio.ComponentGroup.WebToolsExtensions",
      "Microsoft.VisualStudio.ComponentGroup.WebToolsExtensions.TemplateEngine",
      "Microsoft.VisualStudio.ComponentGroup.Windows10SDK.15063",
      "Microsoft.VisualStudio.ComponentGroup.Windows10SDK.16299",
      "Microsoft.VisualStudio.Web.Mvc4.ComponentGroup",
      "Microsoft.VisualStudio.Workload.Azure",
      "Microsoft.VisualStudio.Workload.CoreEditor",
      "Microsoft.VisualStudio.Workload.Data",
      "Microsoft.VisualStudio.Workload.DataScience",
      "Microsoft.VisualStudio.Workload.ManagedDesktop",
      "Microsoft.VisualStudio.Workload.ManagedGame",
      "Microsoft.VisualStudio.Workload.NativeCrossPlat",
      "Microsoft.VisualStudio.Workload.NativeDesktop",
      "Microsoft.VisualStudio.Workload.NativeGame",
      "Microsoft.VisualStudio.Workload.NativeMobile",
      "Microsoft.VisualStudio.Workload.NetCoreTools",
      "Microsoft.VisualStudio.Workload.NetCrossPlat",
      "Microsoft.VisualStudio.Workload.NetWeb",
      "Microsoft.VisualStudio.Workload.Node",
      "Microsoft.VisualStudio.Workload.Office",
      "Microsoft.VisualStudio.Workload.Python",
      "Microsoft.VisualStudio.Workload.Universal",
      "Microsoft.VisualStudio.Workload.VisualStudioExtension",
      "Microsoft.VisualStudio.Workload.WebCrossPlat"
   ],
   "addProductLang":[
      "en-US"
   ]
}

7. open cmd and run the command vs_enterprise --quiet --nocache --wait

8. If you Open Task Manager you will see VS installer is running.

Wait until the complete installation.

Powered by Passion

Search This Blog

Visual Studio 2017 Silent offline Installation

Labels

Comments

Post a Comment
